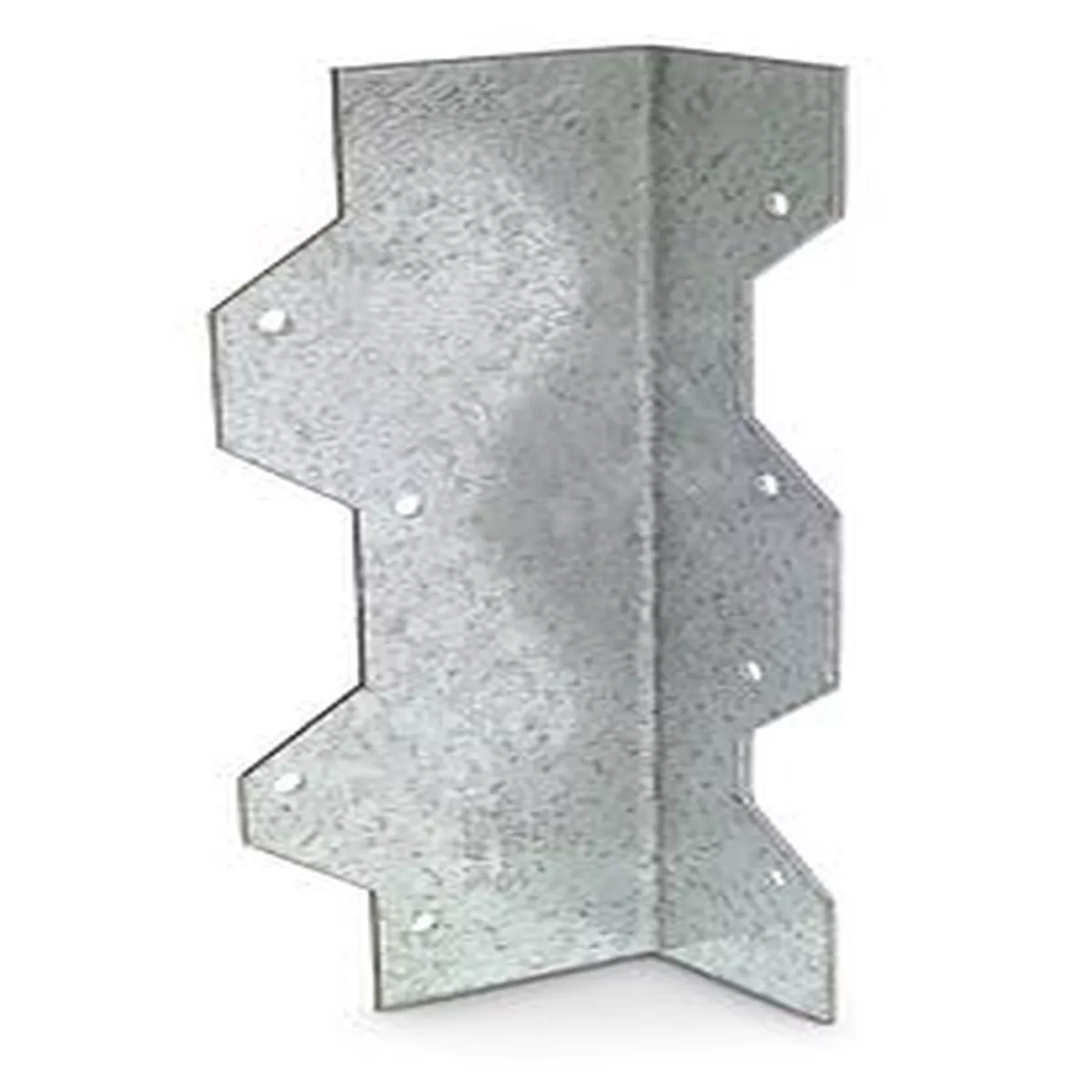

The L angle is a general utility-reinforcing connector with multiple uses. The durable design and fastening options of these load-rated skewable angles make them an ideal option compared to field-fabricated clip angles. The L angle has well-defined fastener locations, and testing ensures that the tabulated load values account for connection eccentricities.
Key Features
- Staggered nail pattern reduces the possibility for splitting
- Available in multiple sizes to ensure proper selection for the specific use
- Load rated for wood and cold-formed steel applications
Material
- 54 mil (16 ga.)
Finish
- Galvanized (G90)
Installation
- Use all specified fasteners; see General Notes
- Nail the L angles wider leg into the joist to ensure table loads and allow correct nailing
| Model No. | Thickness (mil) | Ga. | L (in.) | Coating/Material | Packaging Qty. |
|---|---|---|---|---|---|
| L30 | 54 | 16 | 3 | Zinc Galvanized, G90 | 1 |
| L50 | 54 | 16 | 5 | Zinc Galvanized, G90 | 1 |
| L50Z | 54 | 16 | 5 | ZMAX | 1 |
| L70 | 54 | 16 | 7 | Zinc Galvanized, G90 | 1 |
| L70Z | 54 | 16 | 7 | ZMAX | 1 |
| L90 | 54 | 16 | 9 | Zinc Galvanized, G90 | 1 |
| L90Z | 54 | 16 | 9 | ZMAX | 1 |
